Fixing a broken Fossil charging dock cable

My other half somehow managed to break the USB connector from the cable of the Fossil Smartwatch Charging Dock.

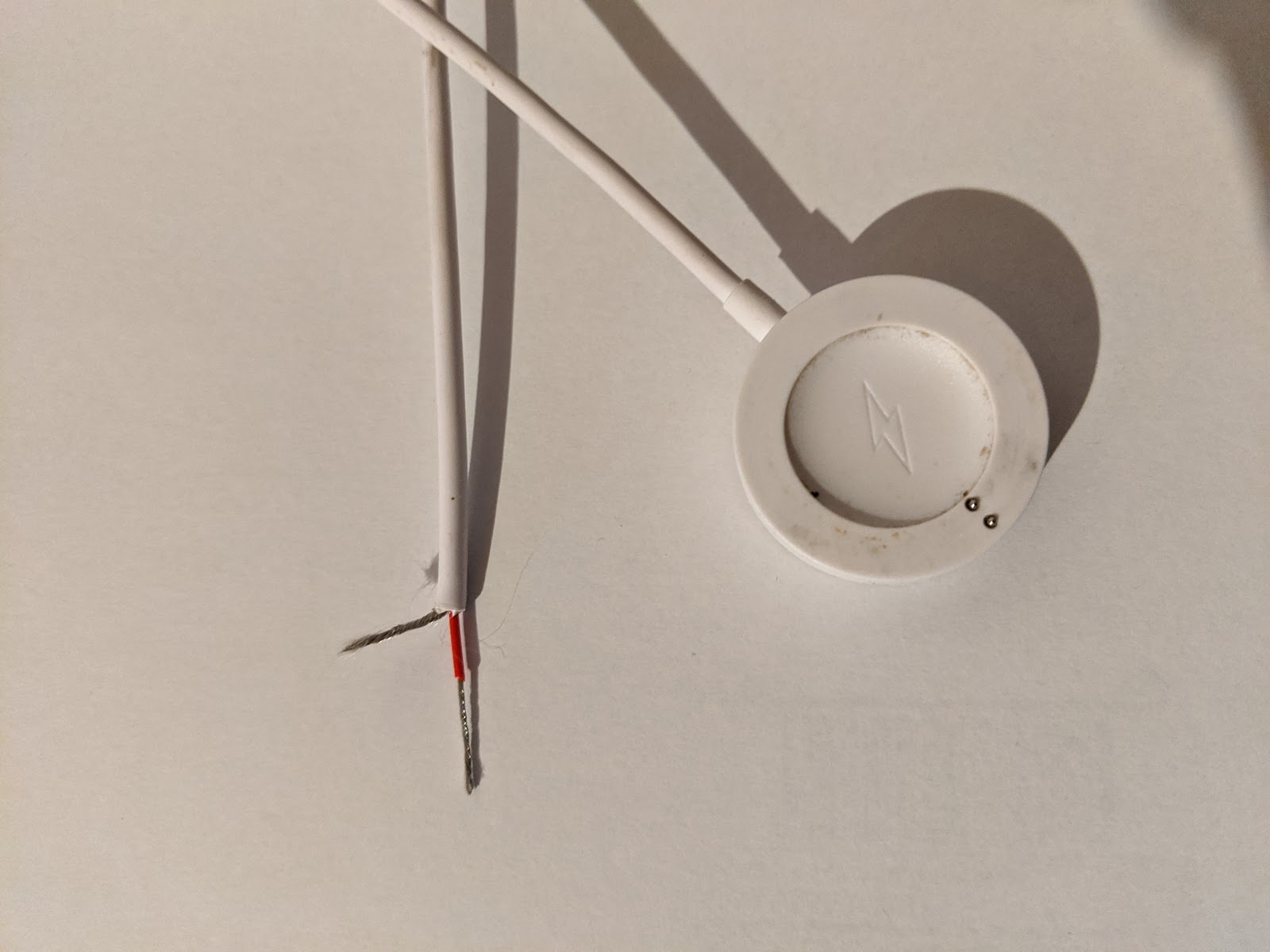

It seemed that the cable itself only exposed two wires in the lead, which suggested that it could be easily fixed:



I couldn't find anyone with this same issue on the internet as I vaguely recollect the watch can be connected to USB for debugging purposes and USB data requires more than 2 wires...

I may have remembered that wrongly, but I figured I had to open up the connector to make sure that it is indeed just a two wire connection.

The connector itself was a bit of a pain to get into. After prying the silicon sleeve from the connector I could see just two connections: GND and VCC. So far, so good...

I had to use a pair of snips to get the transparent protective plastic off so I could get at the actual contacts:



Luckily, there's a pad marked "GND" on the tiny board, so I could easily figure out how to connect these two leads back on the PCB.

I added a little bit of heat-shrink tube to the exposed wire to make sure it could not short out with the red wire. Before soldering it back on, I had to push the wire through the original silicon sleeve. This was hard to do but I managed after snipping off the small part tube. Hard to explain what I mean but here's a little picture of the thing:


For good measure I ran two different sized pieces of white heat-shrink around the cable to shrink back after adding the original sleeve. Then, I soldered the wires back to the board.


I pushed back the transparent plastic and put some additional heat-shrinking around the connector so it was nice and snug:

I pushed back the sleeve, and applied heat to the heat-shrink tube I had put around the cable, like so:

As you can see, it's not the prettiest job. But it works fine -- and that's what's important! :-D

(I hope this information is of some use for others. As I couldn't find similar repair stories online, I imagined it would be useful to share this as it may not be obvious only two wires are needed and none of them are data.)
